DMC - Message Sign

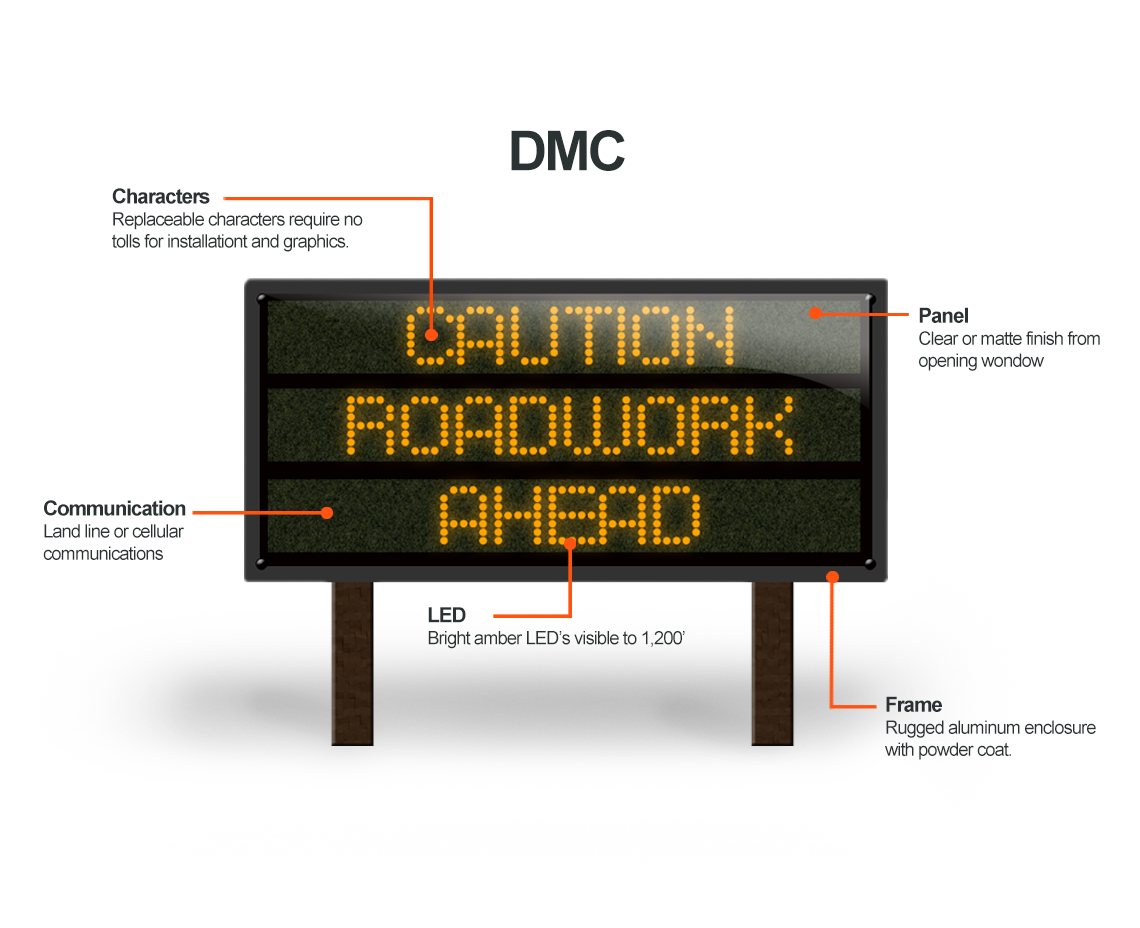

National Signal introduces its new Dynamic Message Center (DMC), combining the power of its dynamic message signs with a low profile, permanently mounted sign.
Utilizing the latest in LED messaging technology, the DMC provides a distinct safety advantage to motorists, whether warning of adverse road conditions, approaching traffic congestion, or excessive vehicle speeds.
Features:
• Local control or remotely operated
• Various sizes available
• All LED
• Full matrix or 3-line options
• Hundreds of pre-programmed messages, symbols or graphics
• Solar or AC powered
• Radar and overspeed/violator alert options available
• Easy to operate and cost effective with low maintenance
| Sign Panel | |
|---|---|
| Sign Panel | • 590 nm (amber) light output LED AllnGaP technology • Full Matrix LED Models: 4 LEDs per pixel • Store over 300 pre-programmed permanent messages, MUTCD messages, and operator-created messages • Multiple message sequencing • Various fonts from 7.5” up to 51” character height depending on model • Moving arrows, chevrons, and other graphics with auto-centering of messages • Unaffected by RF interference |
| Mounting | |
|---|---|
| Mounting | Sign panel is capable of being mounted in a variety of configurations depending on specifications. Contact factory for details. |
| Solar / AC Power | |
|---|---|
| Solar / AC Power | • Sign panel can operate using AC electrical power
hardwired to the sign or a solar panel array mounted on
top of, or in conjunction with, the sign installation utilizing
a series of battery banks. • Battery: deep cycle, AGM |
| Controller | |
|---|---|
| Controller | • DMC message signs use our new UniCPU controller which
supports a standard keyboard for ease of maintenance • Embedded communications software is fully NTCIP compliant • Password protected • Single board processing unit simplifies troubleshooting and repair • Arrow display mode, MUTCD symbols, and NTCIP comm. supported |
| Options |
|---|
| Remote communications: cellular, WiFi. |
| Strobe light for overspeed detection |
| Speed violator alert for roadworker/ pedestrian awareness |
| Anti-glare option on window |
| Model No. | Dimensions | Message capability |
|---|---|---|
| DMC-5996-LM | 59" x 96" x 5" | 3 line/8 character |
| DMC-5996-FM | 59" x 96" x 5" | 3 line/11 character/graphic |
| DMC-78128-LM | 78" x 128" x 7.5" | 3 line/8 character |
| DMC-78128-FM | 78" x 128" x 7.5" | 3 line, 11 character/graphic |
